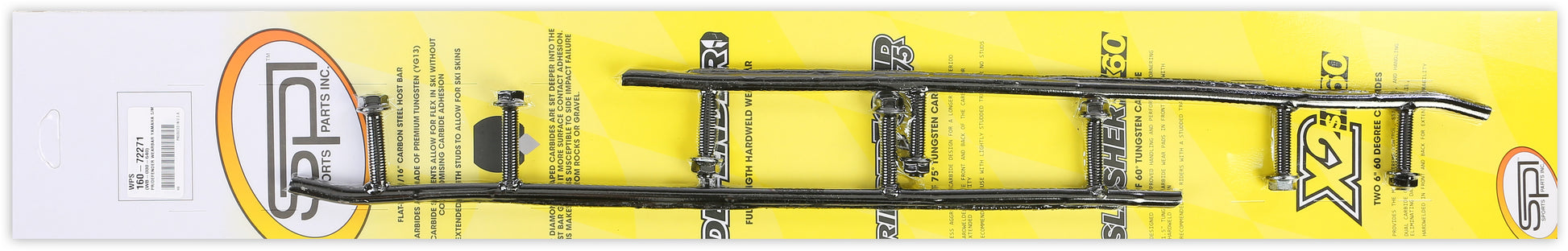

SP1 Defender Wearbar for Yamaha Mountain Max and SX Models – Part WB-000-640

The SP1 Defender Wearbar (Part WB-000-640) is engineered for high-performance snowmobile applications, specifically designed to fit various Yamaha models including the Mountain Max, SX, Phazer Mountain Lite, and SRX 700 series. Crafted with a 7/16-inch carbon steel host bar featuring a flat top, it effectively prevents "bar roll" during aggressive cornering, ensuring stability and control in challenging terrain. The wearbar’s carbides are made from YG13 tungsten, providing exceptional tensile strength, hardness, and resistance to chipping, which significantly enhances durability and extends service life.
The unique 90-degree angle of the carbides into the pocket of the runners creates large cross sections, further improving impact resistance and wear performance. The 1-inch carbide segments allow for flex in the ski without compromising carbide adhesion, offering a balance of flexibility and strength. Engineered and precisely test-fitted for easy installation, this wearbar features chamfered ends that minimize catching when backing up or unloading, reducing potential damage and ensuring smooth operation.
Additional features include extended studs to accommodate ski skins, all necessary fastening nyloc nuts for secure attachment, and a black rust preventative finish on carbides and wearbars to resist corrosion. The hardweld contact area of the host bar increases longevity by providing more depth and wear resistance. The Defender Wearbar is less damaging to concrete and asphalt surfaces, making it suitable for trail riding and other surface interactions. Overall, this durable, high-quality wearbar offers reliable performance, easy installation, and enhanced wear resistance, making it an excellent upgrade for Yamaha snowmobiles that require increased durability and stability during demanding rides.

Features:

• 7/16 inch carbon steel host bar with a flat top to prevent bar roll during aggressive cornering

• Carbides made of YG13 tungsten for maximum tensile strength, durability, and reduced chipping

• 90-degree carbide angle into the pocket for increased cross-sectional strength

• 1-inch carbide segments allow flex without compromising adhesion

• Engineered and test-fitted for easy installation

• Chamfered ends to reduce catching when backing up and unloading

• Extended studs to allow for ski skins

• Includes all necessary fastening nyloc nuts

• Carbides and wearbars finished in black rust preventative

• Hardweld contact area of host bar for increased longevity

• Less damaging to concrete and asphalt surfaces

Fits,
Yamaha Mountain Max 600 2000
Yamaha Mountain Max 600 2001
Yamaha Mountain Max 700 2000
Yamaha Mountain Max 700 2002
Yamaha Mountain Max 700 2003
Yamaha Phazer Mountain Lite 2000
Yamaha Phazer Mountain Lite 2001
Yamaha SRX 700 2000
Yamaha SRX 700 2001
Yamaha SRX 700 2002
Yamaha SX 500 R 2000
Yamaha SX 500 R 2001
Yamaha SX 600 R 2002
Yamaha SX 600 R 2003
Yamaha SX 700 R 2001
