Kuryakyn Trailer Wiring Harness 4-Wire for Harley Davidson Touring Models (Part KUR2598)

Safely and effectively apply the load from your trailer lighting to the battery and not to the rest of the bike's electrical system.

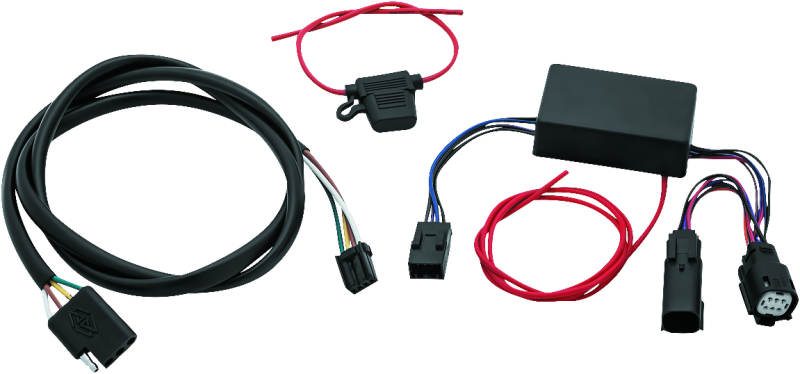

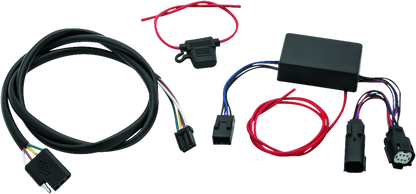

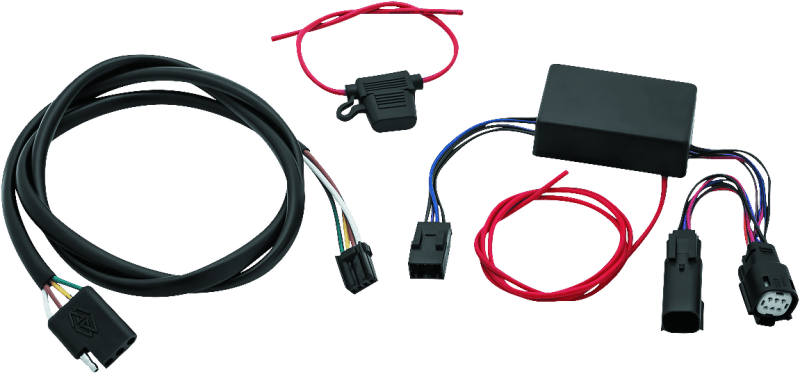

• Includes (1) Relay module 4 wire, (1) 4 Pin trailer plug harness, (1) Inline blade style fuse holder, (1) Blue butt connector 16-14 gauge, (1) Blade fuse 15A, (1) Ring terminal 16-14 american wire gauge, instructions
• Plus, a bonus wire can be connected as needed to provide fused 12 V power to the trailer for compartment lights, or keyless entry systems that are wired independently of the trailer's essential lighting
• Wire Plus 1 or 4-wire Plus 1 kits provide standard 5-wire output (run, brake, left turn, right turn, ground), or standard 4-wire output (run, left turn/brake, right turn/brake, ground).
• Relay harness utilizes the inputs from the motorcycle to direct power from the battery to the appropriate trailer lighting circuit
• Eliminates overloading stock lighting or accessory circuits

The Kuryakyn Trailer Wiring Harness Part KUR2598 is designed to safely connect your trailer lighting system to your Harley Davidson motorcycle without overloading the main electrical circuits. This harness provides a reliable and efficient way to power your trailer lights directly from the motorcycle's battery, ensuring consistent operation and reducing the risk of electrical issues. The kit includes a relay module with four wires, a 4-pin trailer plug harness, an inline blade fuse holder, a 15A blade fuse, a blue butt connector suitable for 16-14 gauge wire, and a ring terminal for secure grounding. Complete with detailed instructions, this kit makes installation straightforward and secure, helping to maintain the integrity of your motorcycle’s electrical system while providing optimal trailer lighting performance.

One notable feature of this wiring harness is the additional fused 12V power supply wire, which can be connected to power auxiliary accessories such as compartment lights or keyless entry systems that operate independently of the trailer's lighting. The wiring configuration supports both standard 5-wire output (run, brake, left turn, right turn, ground) and 4-wire output (run, left turn/brake, right turn/brake, ground), offering versatility to match your trailer's wiring setup. The relay harness utilizes inputs from your motorcycle to direct power efficiently from the battery to the appropriate trailer lighting circuits, effectively preventing overloads on stock lighting or accessory circuits. Suitable for Harley Davidson FLHR Road King models from 2014 to 2021, as well as certain CVO and Limited editions, this harness ensures compatibility across a wide range of touring bikes. Compact and lightweight, it is an essential upgrade for riders seeking a dependable trailer wiring solution that preserves their motorcycle's electrical health and enhances trailer lighting reliability.

Features:

• Includes relay module, trailer plug harness, inline fuse holder, fuse, butt connector, and instructions for comprehensive installation

• Provides fused 12V power output for auxiliary accessories like compartment lights or keyless entry systems

• Supports both 5-wire and 4-wire trailer lighting configurations for versatile compatibility

• Utilizes motorcycle inputs to direct power from the battery, preventing overload of stock circuits

• Designed specifically for Harley Davidson touring models from 2014 to 2021, ensuring a precise fit and reliable performance

Fits,
Harley Davidson FLHR Road King Base 2014
Harley Davidson FLHR Road King Base 2015
Harley Davidson FLHR Road King Base 2016
Harley Davidson FLHR Road King Base 2017
Harley Davidson FLHR Road King Base 2018
Harley Davidson FLHR Road King Base 2019
Harley Davidson FLHR Road King Base 2020
Harley Davidson FLHR Road King Base 2021
Harley Davidson FLHRSE6 CVO Road King Base 2014
Harley Davidson FLHTKSE CVO Limited Base 2014
Harley Davidson FLHTKSE CVO Limited Base 2015
Harley Davidson FLTRUSE CVO Road Glide Ultra Base 2015
Harley-Davidson FLHR Road King Base 2022
