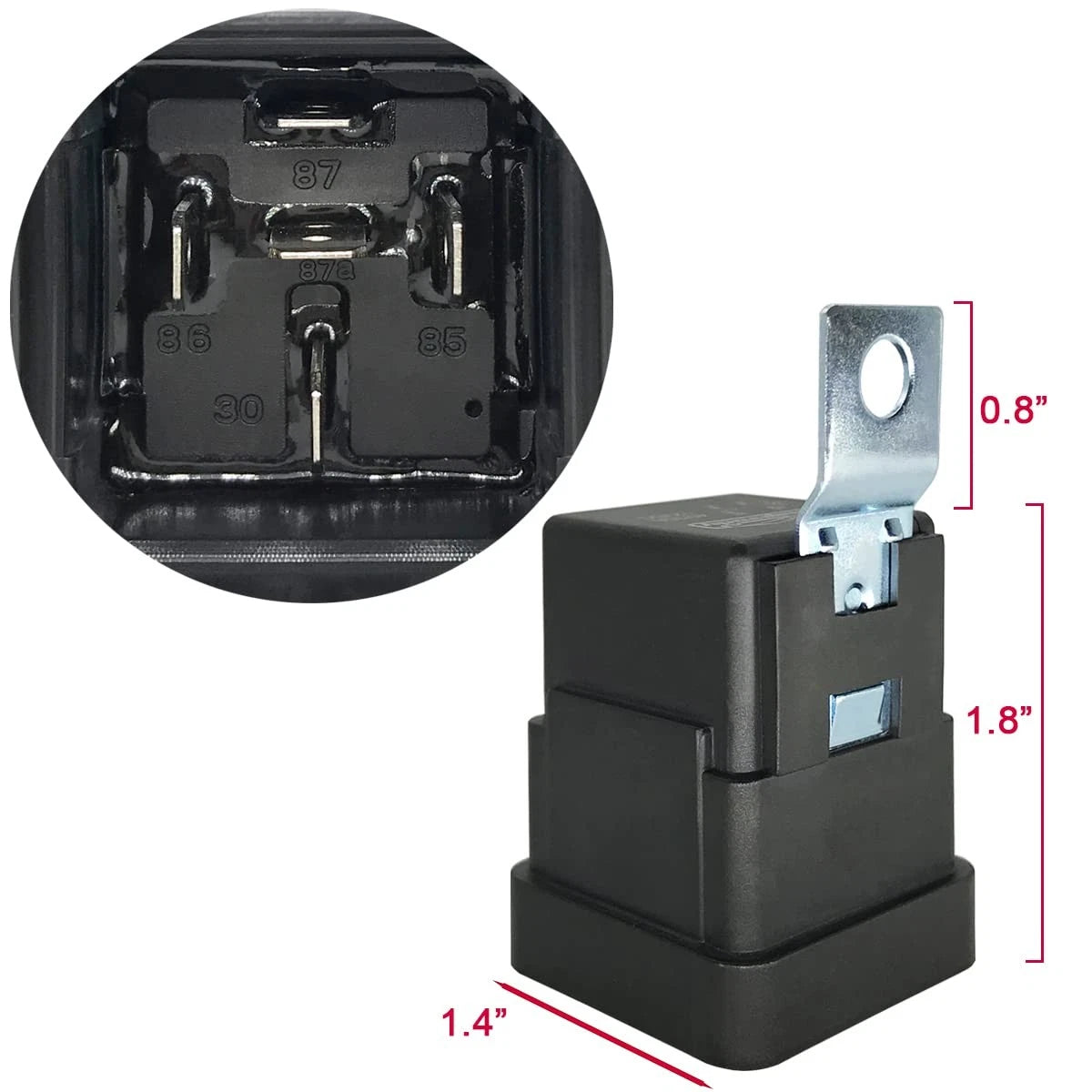

irhapsody 1 Pack 40/30 AMP 12V DC Waterproof Relay and Harness - Heavy Duty

Nominal Coil Voltage: 12 V DC
Coil Power: 1.8 W
Coil Resistance: 80 Ω
Must Operate Voltage: 6~8 V DC
Must Release Voltage: 0.6~3.6 V DC
Maximum Applied Voltage: 15.6 V DC
Contact Ratings: NO 40A 14V DC
Contact Resistance: 100mMAX (at6VDC 1A)
Max Switching Current: 40A
Max Switching Power: 560 W
Life Expectancy Electrical: 100,000 Operations (at30 Operations/minute)
Life Expectancy Machanical: 10,000,000 Operations
Temperature Range: -30 ~ +80 degrees Celsius
Vibration Resistance: 10~55Hz, 1.5mm
Shock Resistance: Operations Extremes: 10g. Damage Limits: 100g
Hunidity: 40% ~ 85%
Insulation Resistance: 100mΩ Min at500VDC
Dielectric Strength Between Open Contacts: 500VAC (for one minute/sec)
Between Contactw and coil: 750AC (for one minute/sec)
Operate Tice: 7ms
Release Tice: 5ms

Package Content: 1 x 12VDC waterproof relay kit

Never go beyond its capabilities. Try to stay 10 to 15% below what the rate is for
12-volt 5-prong (SPDT) relay. Excellent water-repellent and dustproof ability, but do not use it in water

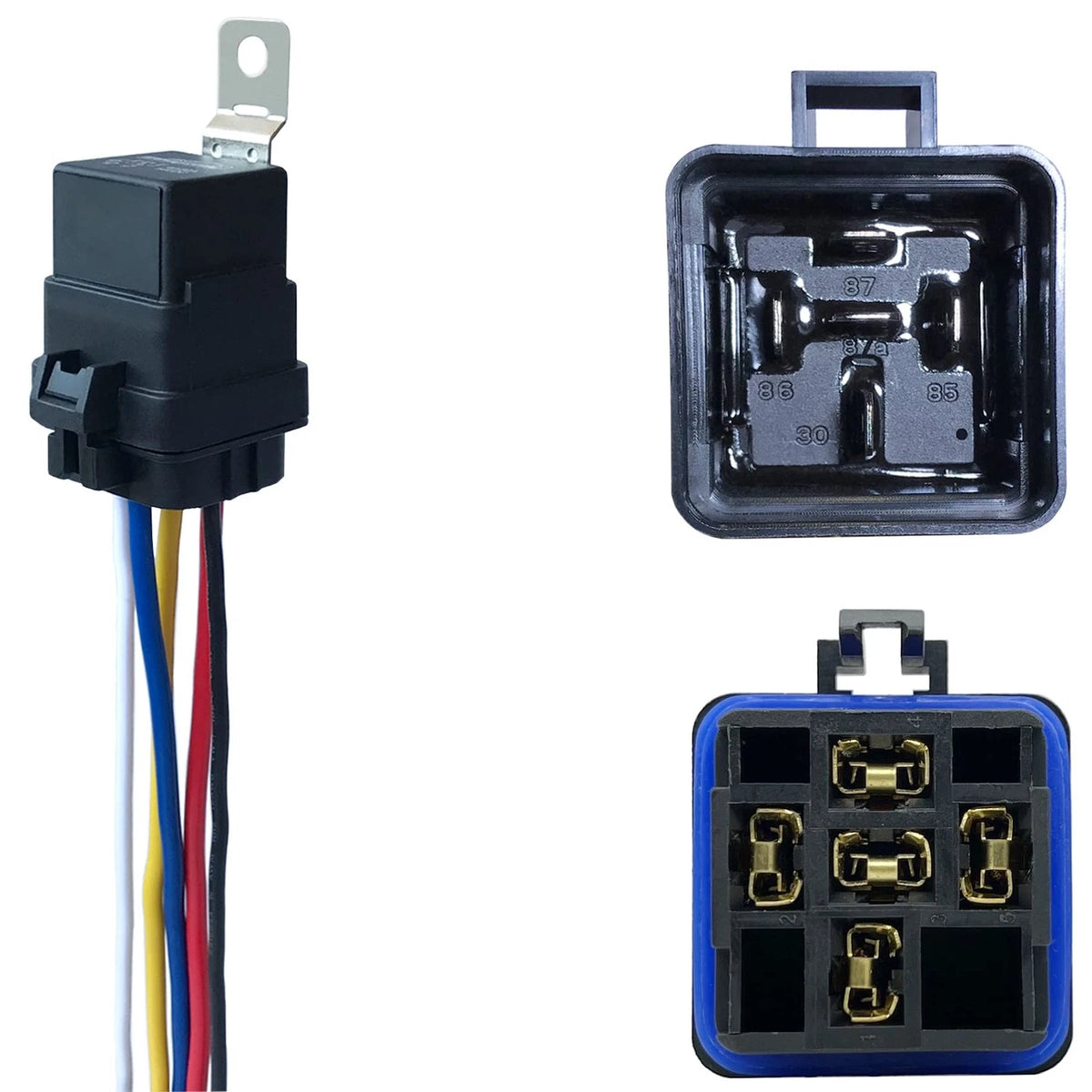

Be careful when plugging the relay into the socket. If you push hard, you will bend the female connector

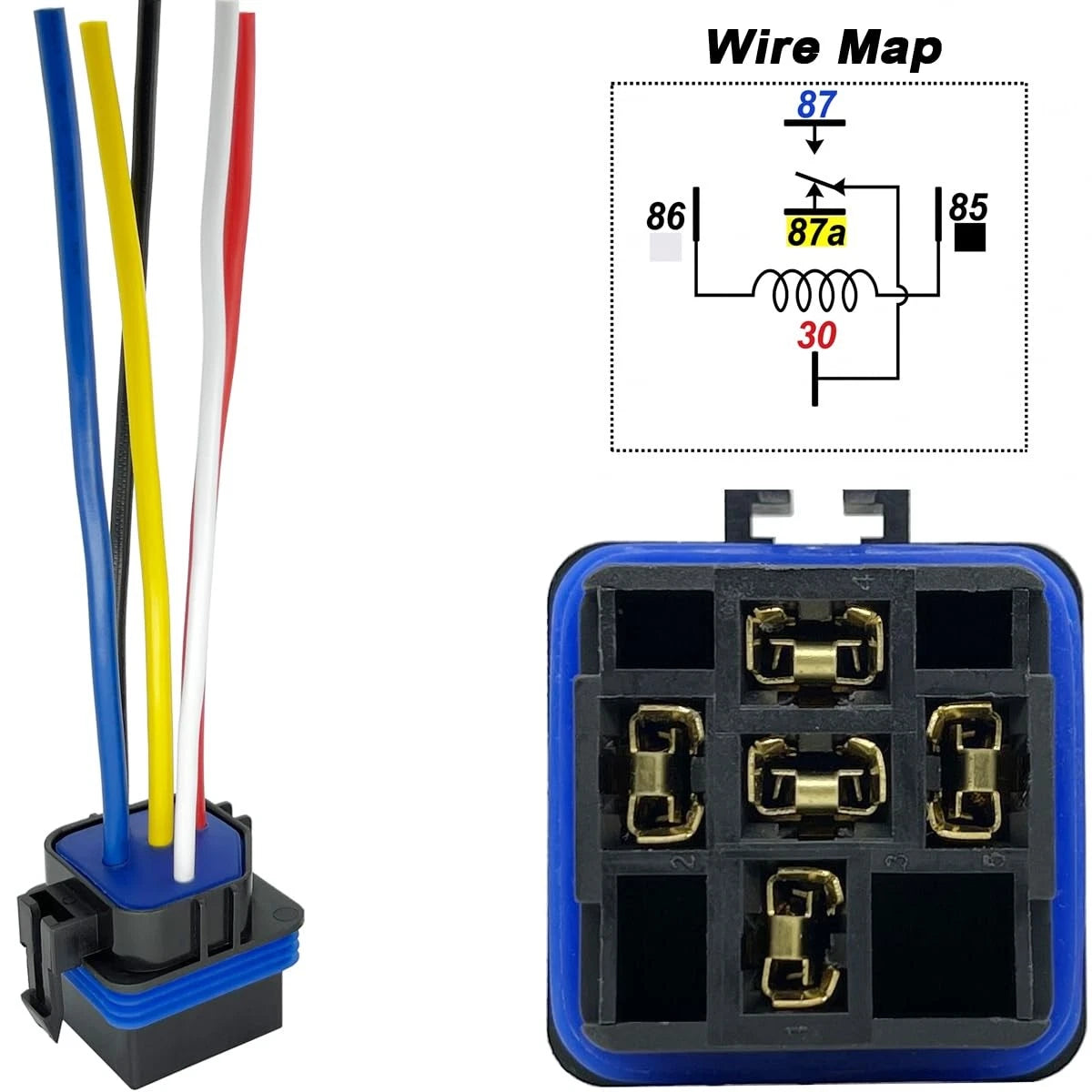

Primary leads use 12 a.w.g tinned copper wire. Coil leads use 16 a.w.g

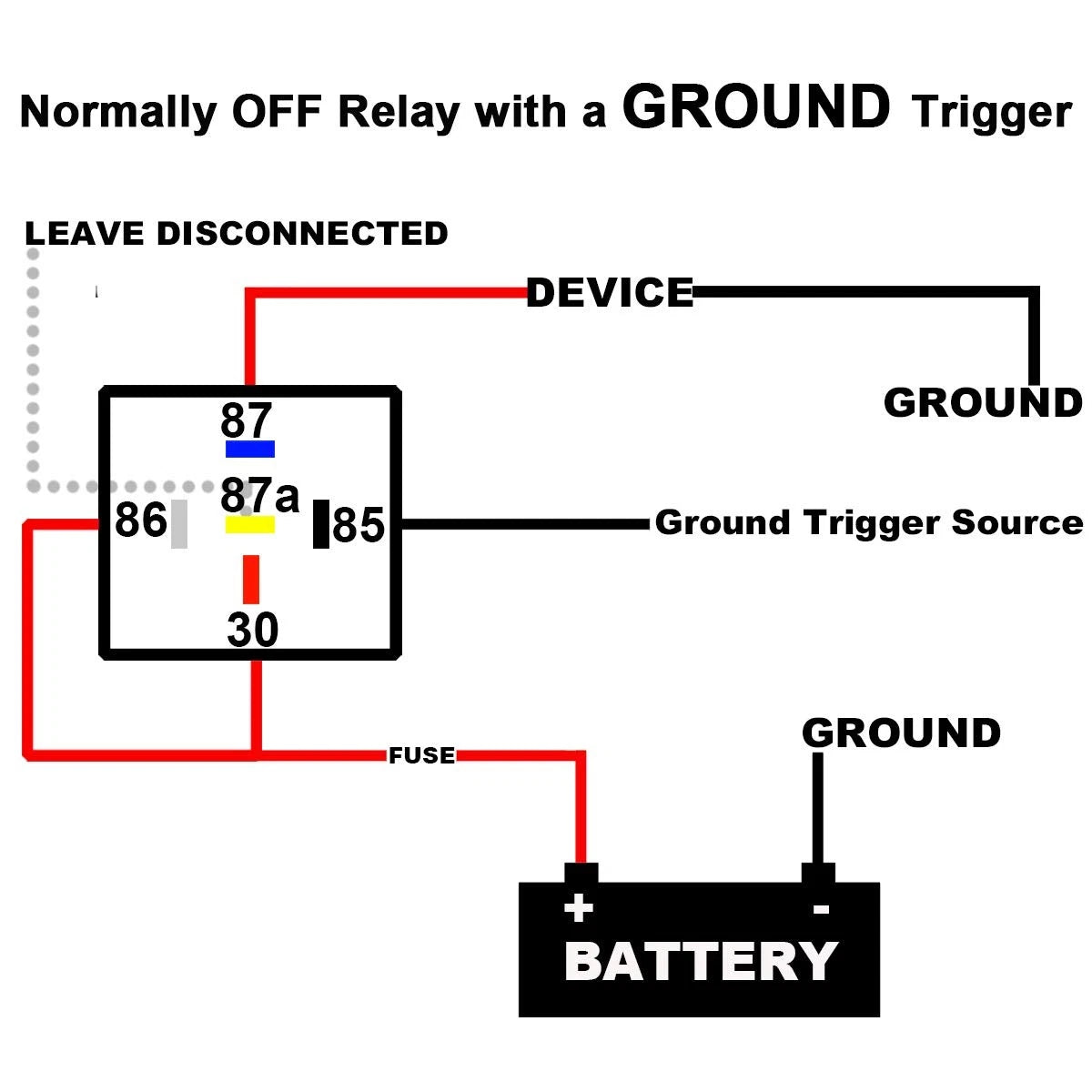

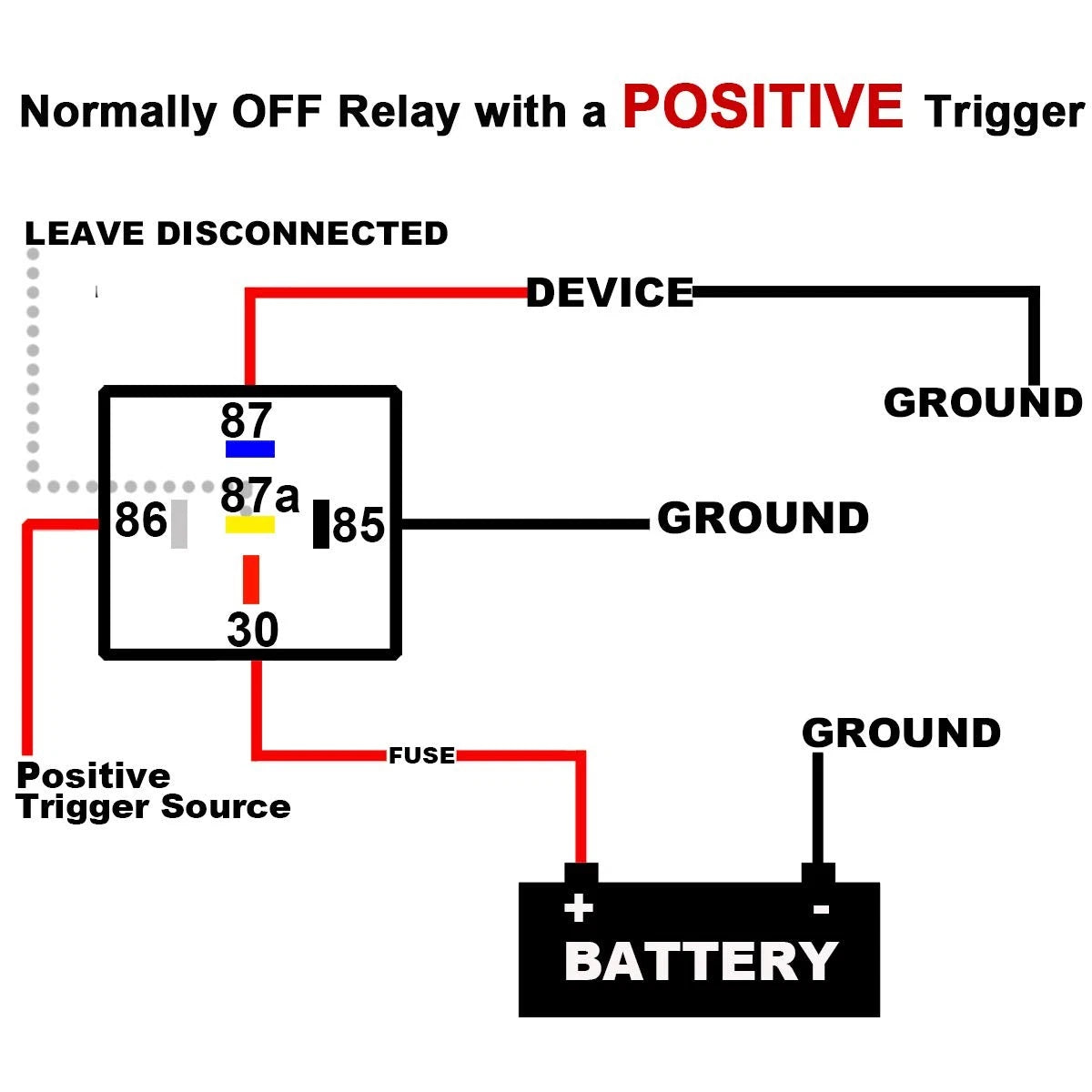

SPDT relay: it has both normally open and normally closed terminals, terminal 87A is powered when the relay is inactive and switches the power to terminal 87 when the relay is activated
